Portable Multi Gas Detector - 14 Gas Concentration Monitoring
Technical Specifications
| Sensors |
Electrochemical (CO, NO2, O3, SO2, H2S, CL2, F2, CH2O), Infrared Ray (CO2, CH4), PID (VOC, C6H6, C7H8, C3H6O) |
| Gas Detection |
CO, CO2, NO2, O3, SO2, H2S, VOC, CL2, F2, CH4, C6H6, C7H8, CH2O, C3H6O |
| Measurement Range |
0-2500PPM (CO), 0-5000PPM (CO2), 0-20PPM (NO2, SO2, CL2), 0-10PPM (O3, F2), 0-200PPM (H2S, VOC, C3H6O), 0-50%VOL (CH4), 0-10PPM (C6H6, C7H8), 0-5PPM (CH2O) |
| Resolution |
1PPM (CO, CO2), 0.01PPM (NO2, O3, SO2, CL2, F2, C6H6, C7H8), 0.1PPM (H2S, VOC, C3H6O), 0.001PPM (CH2O), 0.01%VOL (CH4) |
| Display |
Gas concentration data, measurement trend curves, battery status, time, pump condition |
| Alarm System |
Audible buzzer, red LED indicator, display alerts, fault detection, pump abnormal alarm, low battery warning |
| Data Storage |
Independent SD memory card, automatic recording with customizable time intervals |
| Data Transmission |
RS485 output, USB interface with PC software for data download, analysis, and printing |
| Charging |
Standard Mini-USB charging port with 13V/2A special charger (built-in printer) or 5V/2A universal charger |
| Language |
Chinese/English |
Key Features & Advantages
Advanced Display & Design

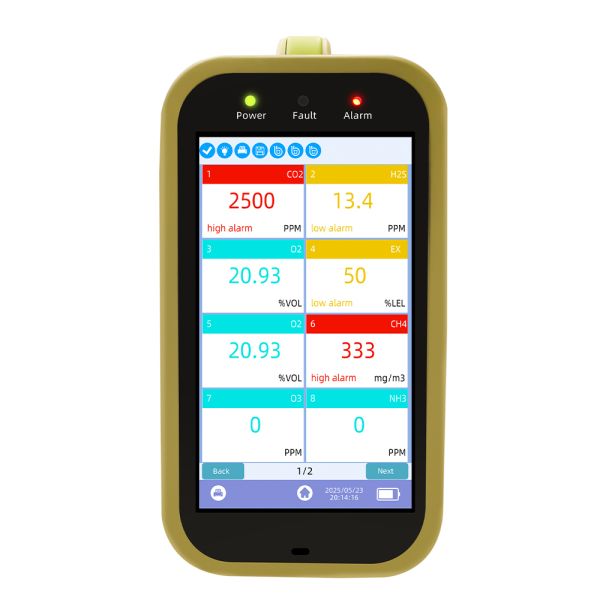

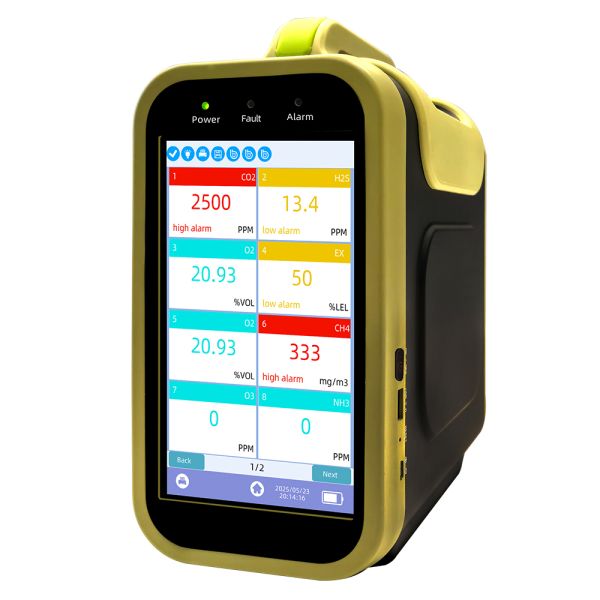

Features a 7-inch color touchscreen with 800 * 480 resolution and 150-degree wide viewing angle. The ergonomic chassis includes a carrying handle and is constructed from high-strength aviation-grade wear-resistant materials for durability in industrial environments.
Modular Internal Structure
Patented modular design with up to three independent detection modules, each capable of monitoring up to six gases. Separate air intake systems prevent cross-gas interference for enhanced accuracy.
High Customizability
Configurable with multi sensors to meet specific monitoring requirements, including custom flue gas configurations supporting up to 9 simultaneous gas measurements.
Multi-Pump System
Advanced air supply system with up to three pumps that can be switched independently. Ten adjustable flow rate settings accommodate different environmental conditions while protecting sensor longevity.
Comprehensive Data Management
Standard SD memory card supports real-time data, alarm values, and historical trend analysis with export capabilities via USB.
Safety & Security Features
- Password protection prevents unauthorized parameter changes
- Safety alert system for operator comfort
User-Friendly Operation
- PPM/mg/m³ /%VOL unit switching with automatic conversion
- Individual sensor factory reset capability
- Chinese/English interface
Standard & Optional Accessories
Standard Package Includes:
- User manual
- Certificate/warranty card
- SD memory card (capacities customized)
- Charging adapter
- Water trap filter
- Intake sampling probe
- 1000mm sampling hose
- Professional carrying case: non-toxic, odorless, explosion-proof, waterproof, heat-resistant, and corrosion-resistant
Why Choose Safegas?
R &D Experience: Over 25 years
Company Certifications: ISO9001, ISO45001
Product Certifications: IECEx ATEX CE
Delivery Time: 5-7 days
Annual Capacity: 80,000 units
Customer Service: Professional 24/7 support
