Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases

Name: Rugged Portable MultiGas Detector with IP67 WaterproofDustproof PumpAspirated Sampling and Alarms for Four Gases
Brand: Safegas
Price: 1 USD

Quality Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases for sale

Brand Name : Safegas

Model Number : SKY3000

Certification : IECEX/ATEX/EMC

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 pieces/day

Delivery Time : 4 working days

Packaging Details : Carton

Precision : ≤±1-5%FS

Single Package Size : 34cm*24cm*14cm

Dimension : 157*84.5*59.5mm

Operating Temperature : -20°C to 50°C

Ampling Method : Pumping Suction

Wireless Transmit : Optional, By 4G, LORA, WIFI

Body Material : PC+TPU

Support Gas : 6 gas types in 1 device

Contact Now

SKY3000 Portable Pumping Multi-Gas Detector (O₂ / CO / H₂S / LEL)

A rugged, pump-suction four-gas detector certified to IECEx, ATEX, and EMC standards. Simultaneously monitors oxygen (O₂), carbon monoxide (CO), hydrogen sulfide (H₂S), and combustible gases (LEL). Designed for forced gas sampling in confined spaces and hazardous environments.

Product Overview

The SKY3000 is a high-performance portable gas detector with a built-in sampling pump, capable of measuring up to six gas types in a single device. The standard configuration covers four common gases: O₂, CO, H₂S, and LEL. Its wireless communication option allows remote access to real-time data and alarm status. An onboard data logger stores up to 100,000 readings, and data can be exported directly to a PC without additional software.

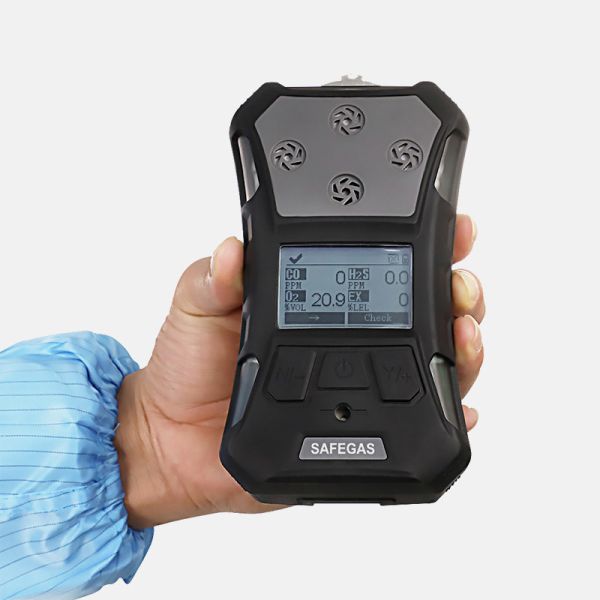

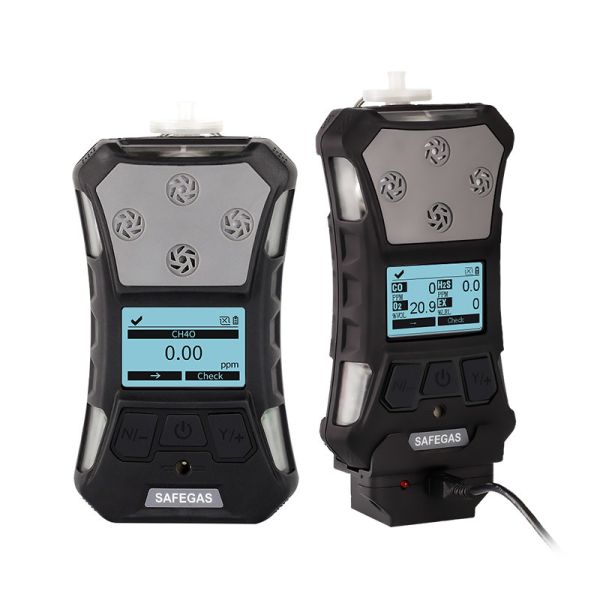

Product Pictures

Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases

Key Technical Specifications

Parameter	Value
Gases Detected	O₂, CO, H₂S, LEL (combustible)
Detection Principle	Electrochemical (O₂/CO/H₂S), Catalytic (LEL)
Measure Range	O₂: 0-30%VOL; CO: 0-1000ppm; H₂S: 0-100ppm; LEL: 0-100%LEL (customizable)
Resolution	O₂: 0.1%VOL; CO: 1ppm; H₂S: 0.1ppm; LEL: 1%LEL
Response Time	≤20 seconds (for all gases)
Precision	≤±1-5% F.S. (gas-dependent)
Unit	ppm, mg/m³, %LEL, %VOL
Display	LCD (160×96), supports 180° screen rotation
Backlight	Auto-on during alarm; manual adjustable duration
Data Logging	100,000 records; storage interval 5-3600 seconds; export to PC - no software required
Alarm Types	95dB@30cm buzzer, flashing red LED, vibration; alarm latch, diagnostic alarms (battery under-voltage, pump failure, man-down)
Battery	3.7V rechargeable lithium, 2200mAh capacity
Operating Hours	>15 hours in continuous pumping mode
Charger	Travel charger with DC interface; charging time ≥4 hours
Operating Temperature	-20℃ ~ +50℃
Humidity	10-90% RH (non-condensing)
Protection Grade	IP67 (water and dust resistant)
Drop Resistance	3 meters
Explosion-proof Grade	IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
Dimensions	157 × 84.5 × 59.5 mm (including back clip / water trap filter)
Weight	365g (including battery, belt clip, and filter)

Main Features

Built-in sampling pump - Actively draws in air for fast response, ideal for confined space entry and leak detection.
Robust & durable - IP67 rated against dust and water, plus 3-meter drop resistance for harsh job sites.
Man-down alarm - Standard function to alert when the operator is motionless, enhancing lone worker safety.
Large graphical display - 180-degree rotatable screen for easy reading in any orientation.
Comprehensive data logging - Stores 100,000 records with adjustable interval; export directly via USB - no driver or software needed.
Wireless connectivity (optional) - Supports Lora or Bluetooth for remote real-time monitoring.
Water trap filter - Included standard to protect the pump and sensor from moisture and dust.
Multi-language support - Chinese, English, Russian, Polish; additional languages available on request.
One-key factory reset - Quickly restore default settings.
Long battery life - Over 15 hours of continuous pumping on a full charge.
Alarm variety - Audible (95dB), visual (high-brightness red LEDs), and vibration; also includes pump failure and under-voltage alarms.

Typical Applications

Confined space entry (tanks, pipelines, sewers)
Oil & gas drilling and refining
Chemical and petrochemical plants
Mining and metallurgy
Fire and rescue operations
Wastewater treatment facilities
Shipbuilding and marine industries

Company Advantages

Decades of R&D experience - Engineering team with over 25 years in gas detection technology.
International certifications - Fully compliant with IECEx, ATEX, and EMC standards for explosive atmospheres worldwide.
Quality assurance - Manufactured under ISO9001 and ISO45001 management systems.
Fast turnaround - Typical delivery: 5-7 working days.
High annual capacity - 80,000 units per year.
24/7 customer support - Professional after-sales service available round the clock.

Manufacturer Profile

Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) was established in 2010 and specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, energy, environmental protection, electronics, municipal engineering, agriculture, and home appliances.

Standard Package

Item	Quantity
SKY3000 gas detector (with installed sensors for O₂, CO, H₂S, LEL)	1 piece
Built-in pump and water trap filter (pre-installed)	1 set
USB charging cable & travel charger (DC interface)	1 set
Calibration cap / adapter	1 piece
Belt clip (alligator style)	1 piece
User manual	1 piece
Certificate of conformity / Warranty card	1 piece

Note: The detector is shipped with a standard 2200mAh lithium battery. Charger input voltage is suitable for worldwide use (100-240V AC).
