Biogas Gas Detector O2, H2S, CO2, CH4 H2S NH3 NOX VOC High Concentration Imported Gas Sensor
Product Overview

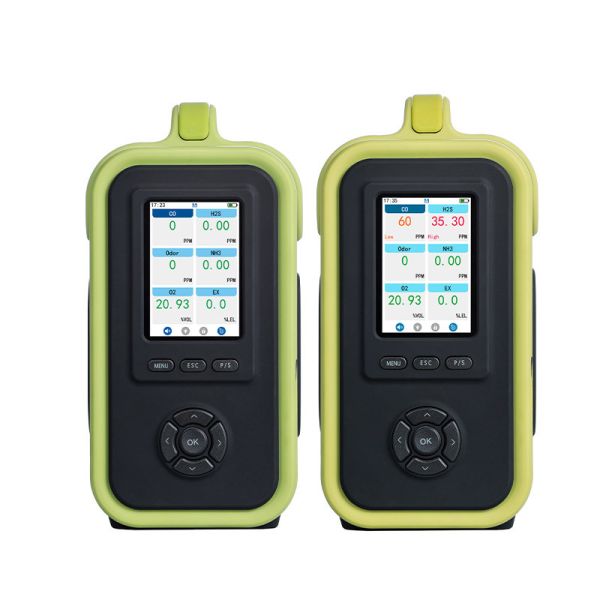

The SKY8000 is a portable gas analysis instrument widely used in industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, indoor air analysis and other applications. The analytical instrument can flexibly detect 1-18 kinds of gases; 1-3 modules can be selected, each module corresponds to one pump, and the internal structure is modularized to take separate air intake for the disturbing gas, effectively avoiding cross interference between gases.
Features include a 3.5-inch high-definition IPS LCD color screen with 150 degree wide viewing angle, Chinese and English operation interface; fall alarm, password protection, safety reminder and other functions for safety upgrade; optional high temperature probe can monitor the gas concentration in harsh high temperature and high humidity environment; large-capacity lithium battery with long standby time; instrument casing made of high-strength engineering materials with ergonomic design for improved user experience.
Product Advantages
- Exterior atmosphere, 3.5-inch high-definition color screen
- Modular internal structure
- High customizability
- Flexible, multi-pump system
- Multiple display modes coexist
- Data Storage
- Multiple security protection
- Powerful and more user-friendly
Product Specifications
| Sensors |
Electrochemical (O2, H2S), IR (CO2, CH4) |
| Gas Detected |
O2, H2S, CO2, CH4 |
| Measure Range |
O2 0-30%VOL, H2S 0-5000PPM, CH4 0-100%VOL, CO2 0-100%VOL |
| Resolution |
1PPM (H2S), 0.1%VOL (O2, CO2, CH4) |
| Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm |
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data Storage |
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval |
| Data Transmission |
RS485 signal output, USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print Function (Optional) |
Optional with internal portable printer or external bluetooth printer |
| Charger |
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer) |
| Language |
Chinese/English |
| Wireless Network (Optional) |
Bluetooth, 2.4G high frequency, transmission distance less than 10m |
| Probe Specifications |
The flue gas environment must be equipped with a high temperature probe gun, which can be resistant to high temperatures of 600°C or 1000°C. The probe length can be 0.3m, 0.7m and 1m. |
Standard Accessories
- One User manual
- One certificate/warranty card
- One 8G large capacity SD card (more capacity needs to be customized)
- One charging adapters
- One water trap filter
- One intake sampling probe
- One 1000mm hose
- One non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase
Optional Accessories
- Printer (built-in thermal printer) one
- A set of high temperature flue gas detectors
Application Case: Thailand Government Department Detects Flue Gas Emissions and Air Quality
Detection Requirements: The customer is a government department that needs to detect flue gas emissions and air quality at the factory boundary. If emissions do not meet standards, companies are required to make rectifications. Seven gases are mainly monitored, and the device needs data storage functions.
Detected Gases: O3, NO, NO2, NOX, HCL, CH2O, VOC
Solution: SKY8000-M7 with original imported gas sensors specific for air quality and flue gas detection.
Solution Features
- SKY8000 can detect up to 18 gases, fully meeting customer demand for 7 gases
- High-performance gas sensors with high resolution and low detection limit
- Wide measurement range suitable for detecting factory exhaust gas
- Built-in 32G memory card for storing detected data with adjustable intervals
- Internal pump with 500ml/min suction for fast detection
- Standard filter to effectively filter water vapor and dust
Why Choose Us?
- R&D team experience: over 25 years
- Company certification: ISO9001, ISO45001
- Product certification: IECEx (the only one in China), ATEX, CE
- Delivery: 5-7 days
- Yearly capacity: 80,000 units
- Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With "gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product Line
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Companies We Cooperated With
Huawei, Coca-Cola, Samsung, Nestlé and so on.
Frequently Asked Questions
Q1: Are you manufacture or trading company?
A1: We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2: What is the MOQ?
A2: Usually it is 1 piece.
Q3: How about the quality of your products?
A3: Our product is made of imported sensors and components, the products are certified.
Q4: How long is the warranty time of the products?
A4: The warranty period is 1 years from the factory, we also provide lifetime maintenance.
